WAFA 3, filling adapter 3-pin bayonet lock for water tank motorhome
Product number:
CS2311B
Product information "WAFA 3, filling adapter 3-pin bayonet lock for water tank motorhome"

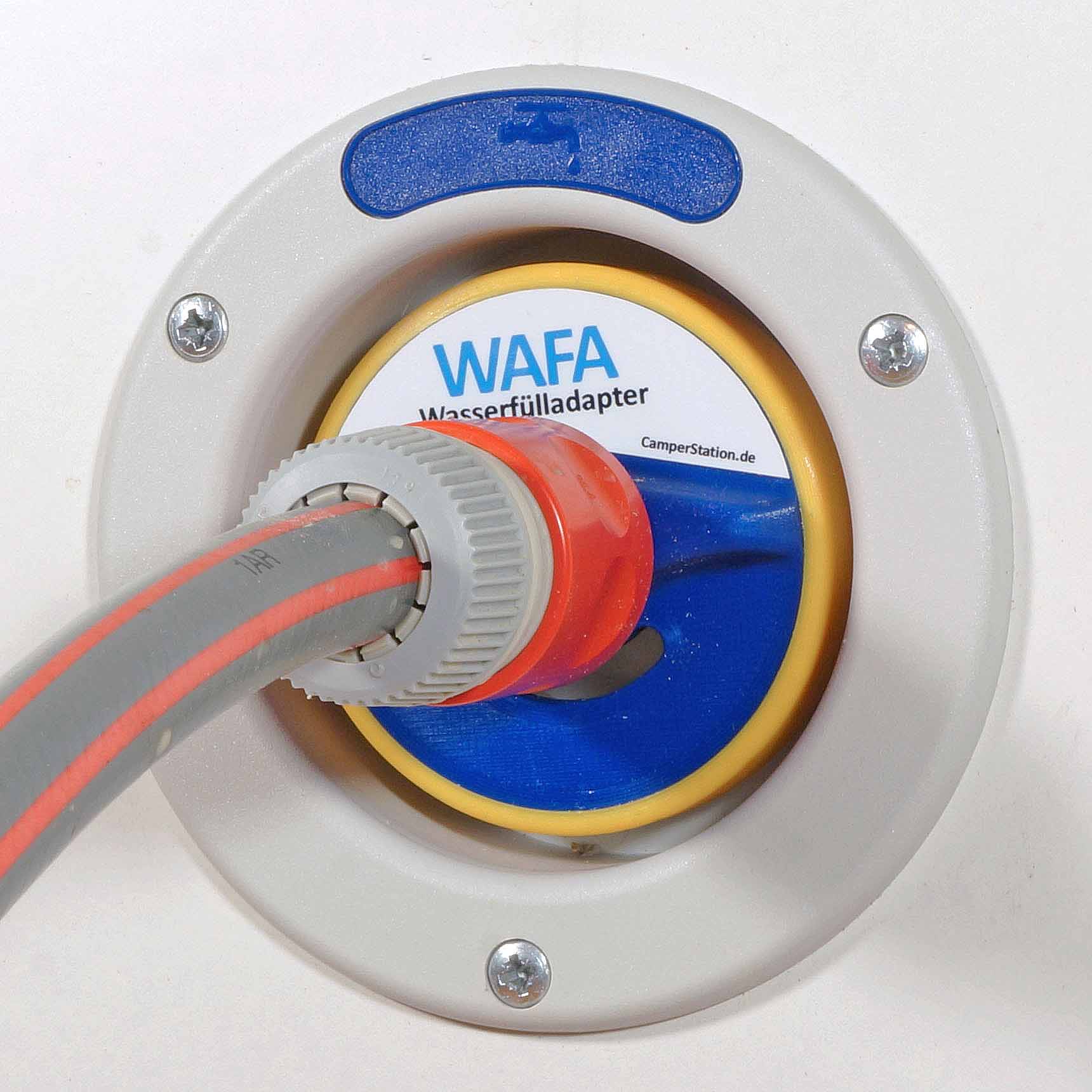

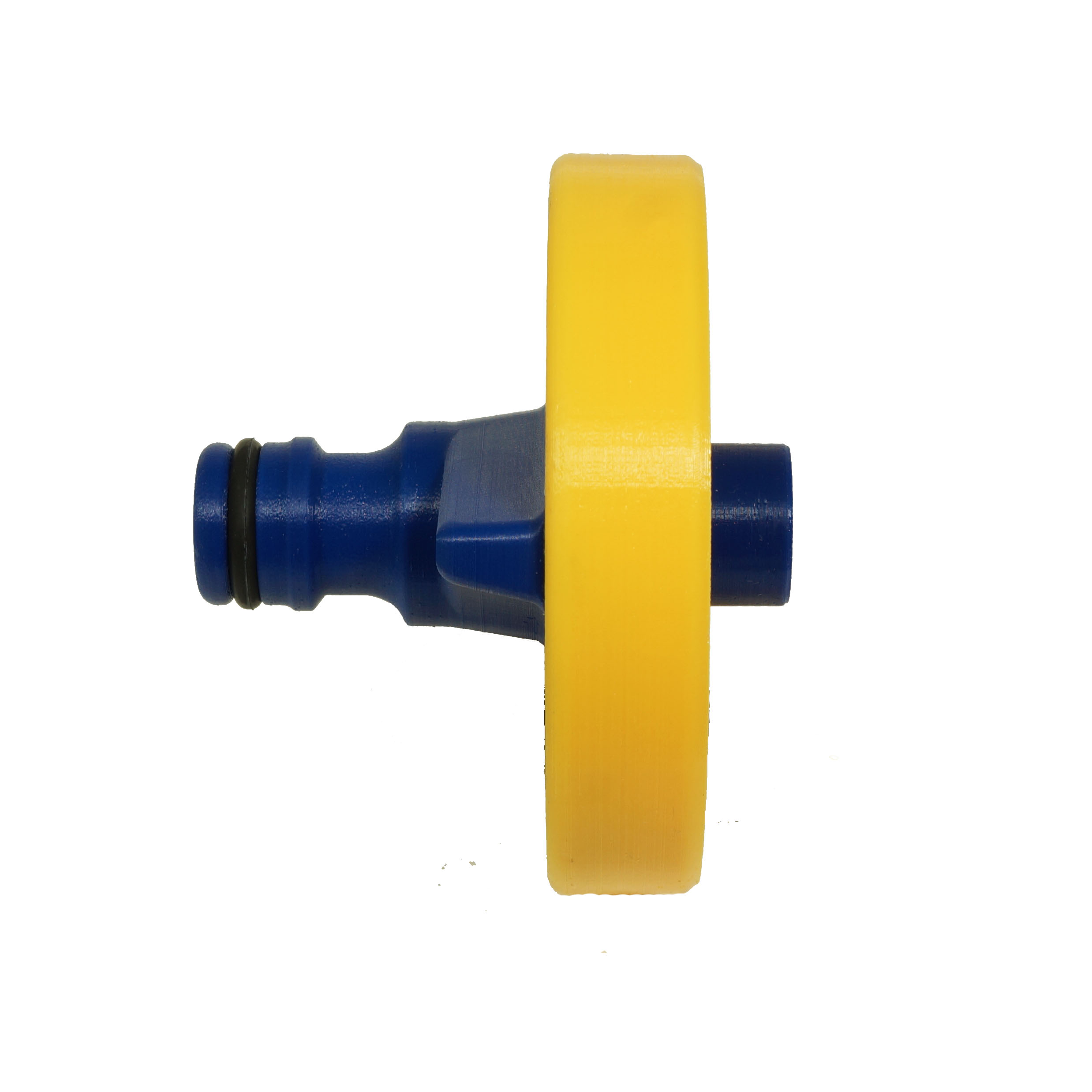

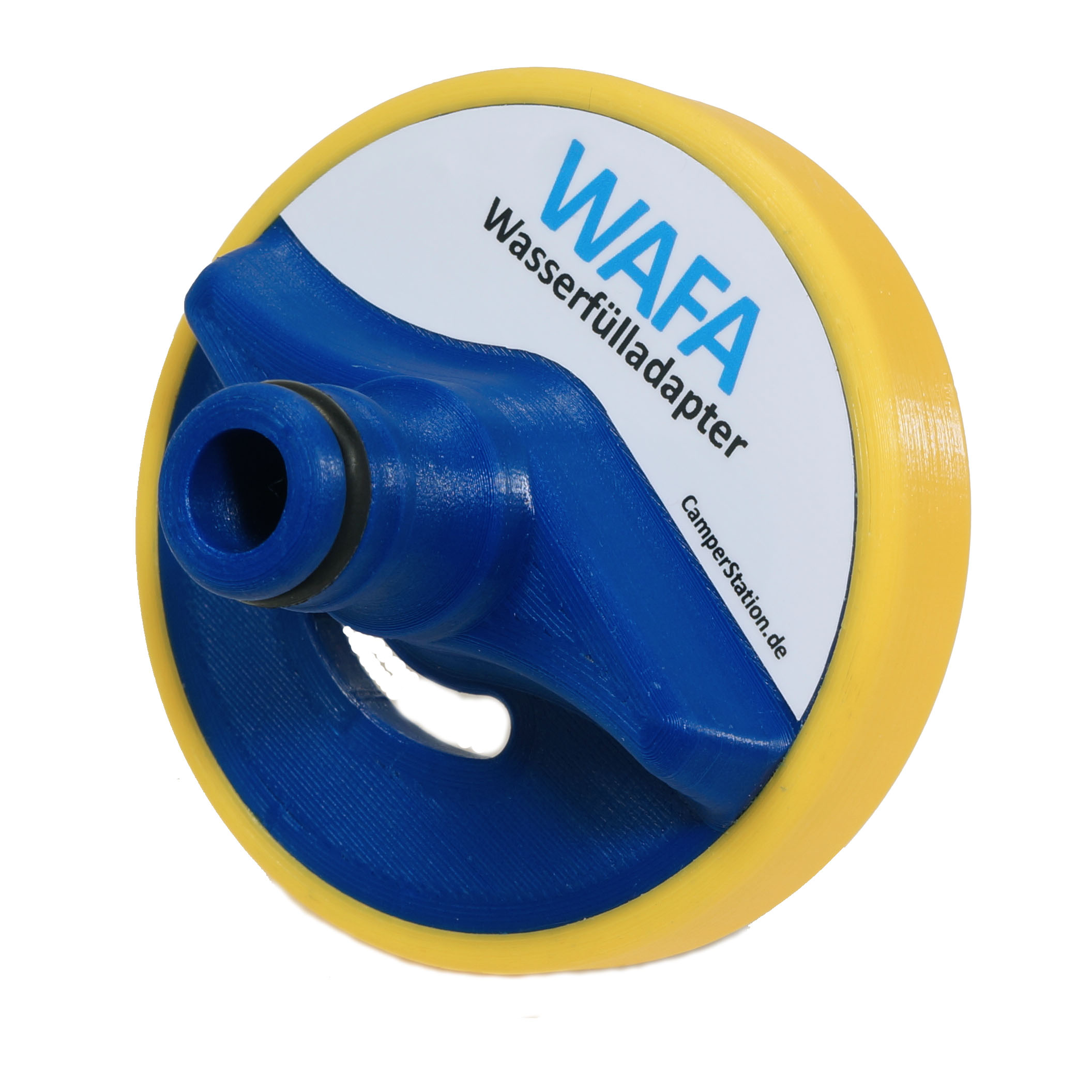

WAFA 3, water tank adapter, with 3-pin bayonet connection

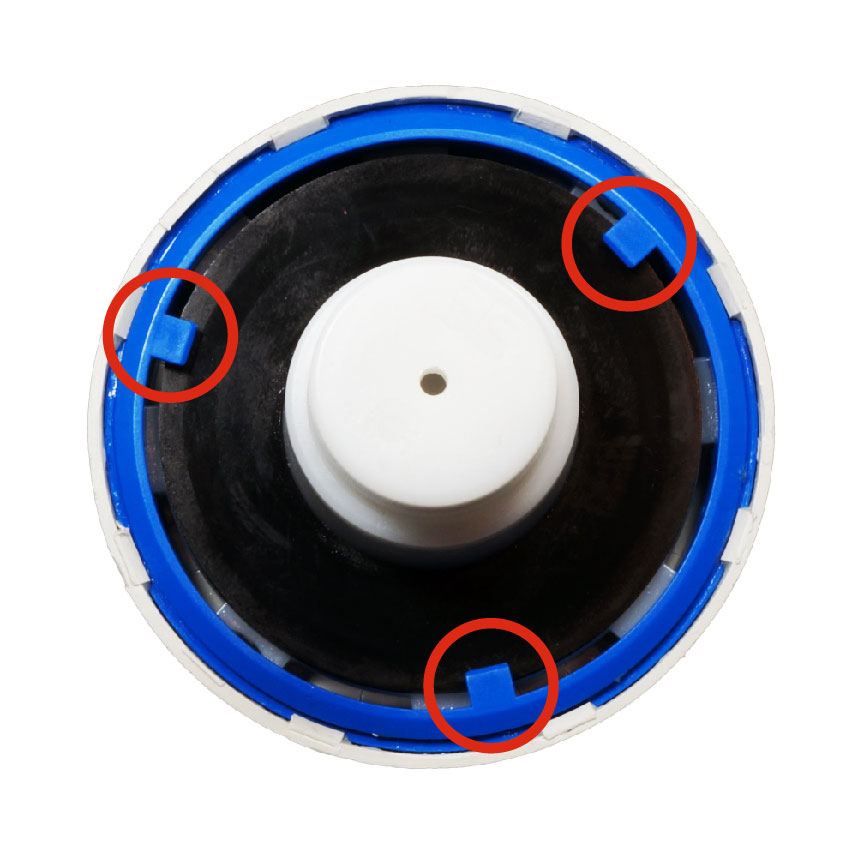

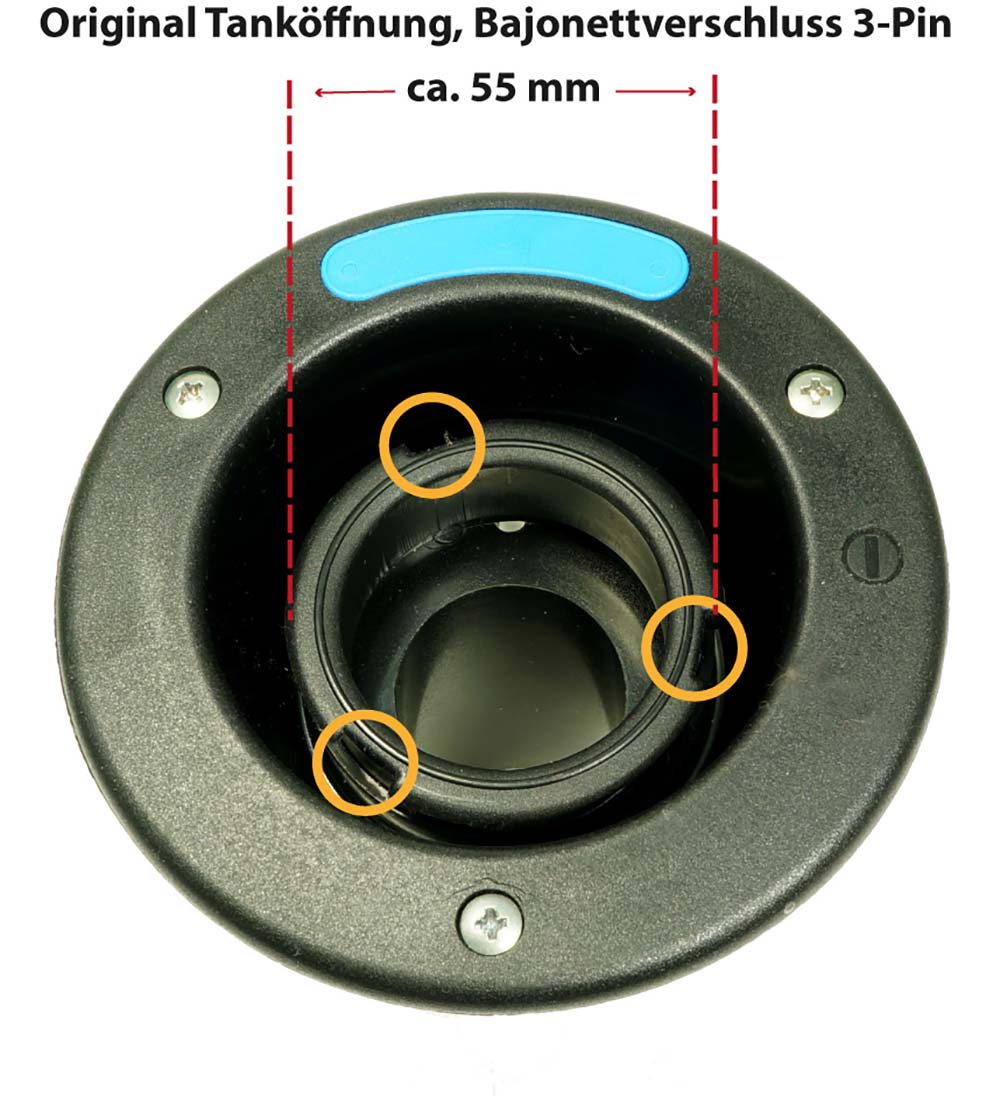

For convenient filling of fresh water tanks in motorhomes, using familiar quick coupling systems for 1/2 inch hoses (Gardena, etc.). Suitable for water tanks with and without overflow. Bayonet fitting with 3 spigots suitable for 68 mm lid diameter or tank filler openings with 55 mm diameter (see photos).
Mostly used for panel van motorhomes, alcoves, semi-integrated, integrated and liners from all common manufacturers.

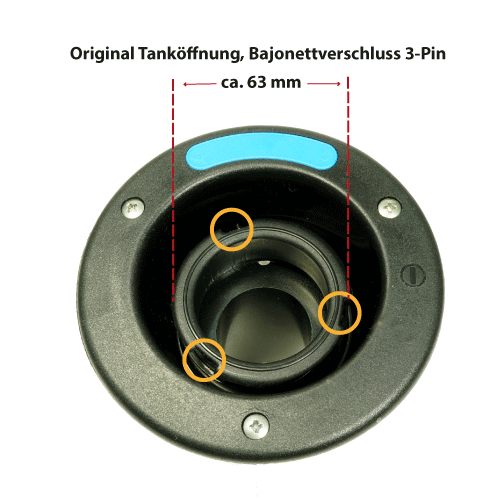

Please compare the original tank opening shown with the number of pins and diameter before ordering.
OR CONTACT US, WE WILL BE HAPPY TO HELP YOU. THERE ARE TWO SIZES.

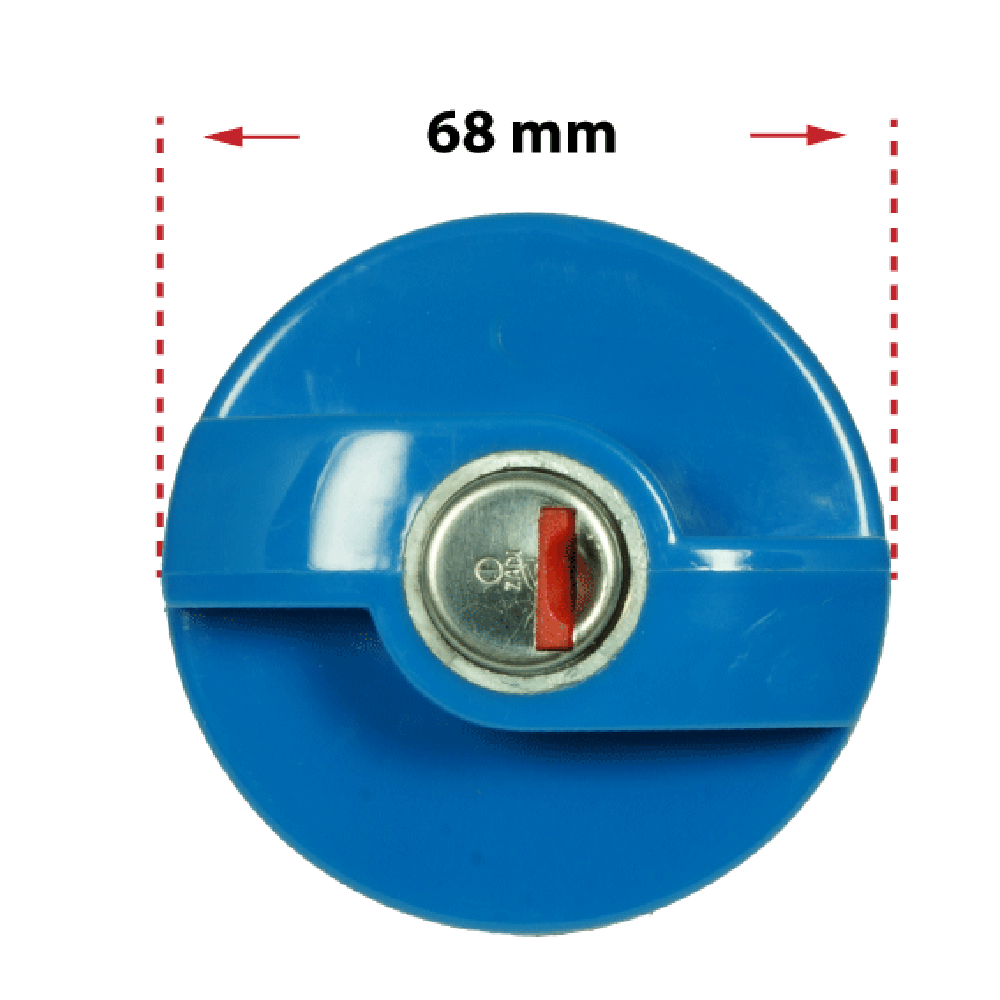

We stock the WAFA 3-Pinin 68 and 78 mm lid diameters.
Tighten the adapter slightly with a short turn to the right.

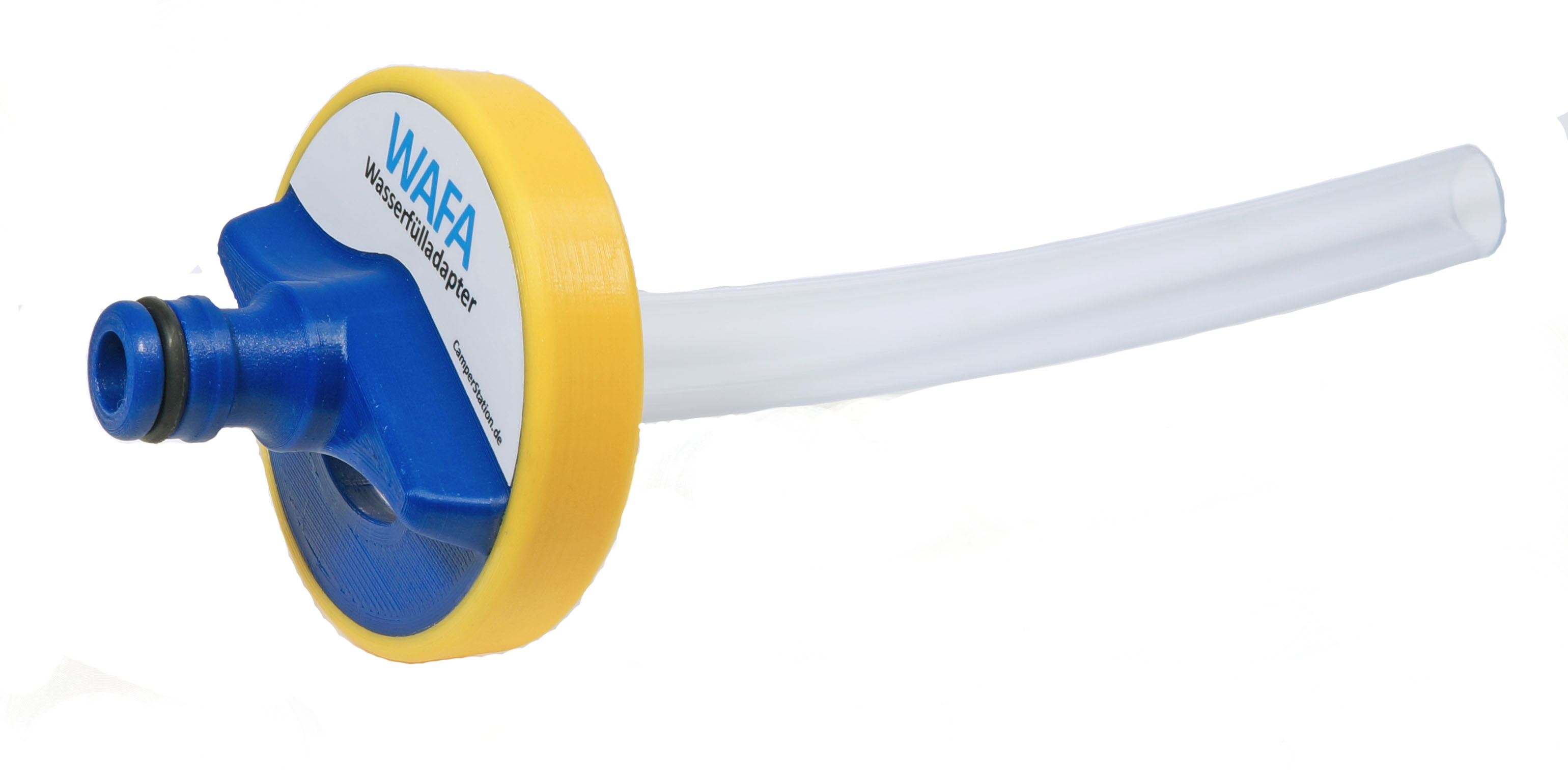

With short horizontal inlet channels, turbulence can occur when filling with high water pressure, which flushes the water out to the pressure openings. In this case, attach the short hose supplied to the outlet channel of the WAFA and insert it into the tank. The pressure openings on the WAFA enable pressure equalisation for water tanks without overflow. When the water tank is full, excess water runs out of the openings.
In-house development, manufactured in Germany.
Material:
Adapter: PET, UV-resistant and suitable for foodstuffs (drinking water). Recyclable plastic. Additional hose: UV-resistant and food-safe. Seals: PET.
Protect from heat above 60°C, do not treat with hot water. Slight deviations in colour or surface structure possible, no impairment of function, additive manufacturing.
Regulation (EU) No. 10/2011 of the European Commission on plastic materials and articles intended to come into contact with food (Europe). Approval by the (FDA) Food and Drug Aministration (USA)
Scope of delivery:

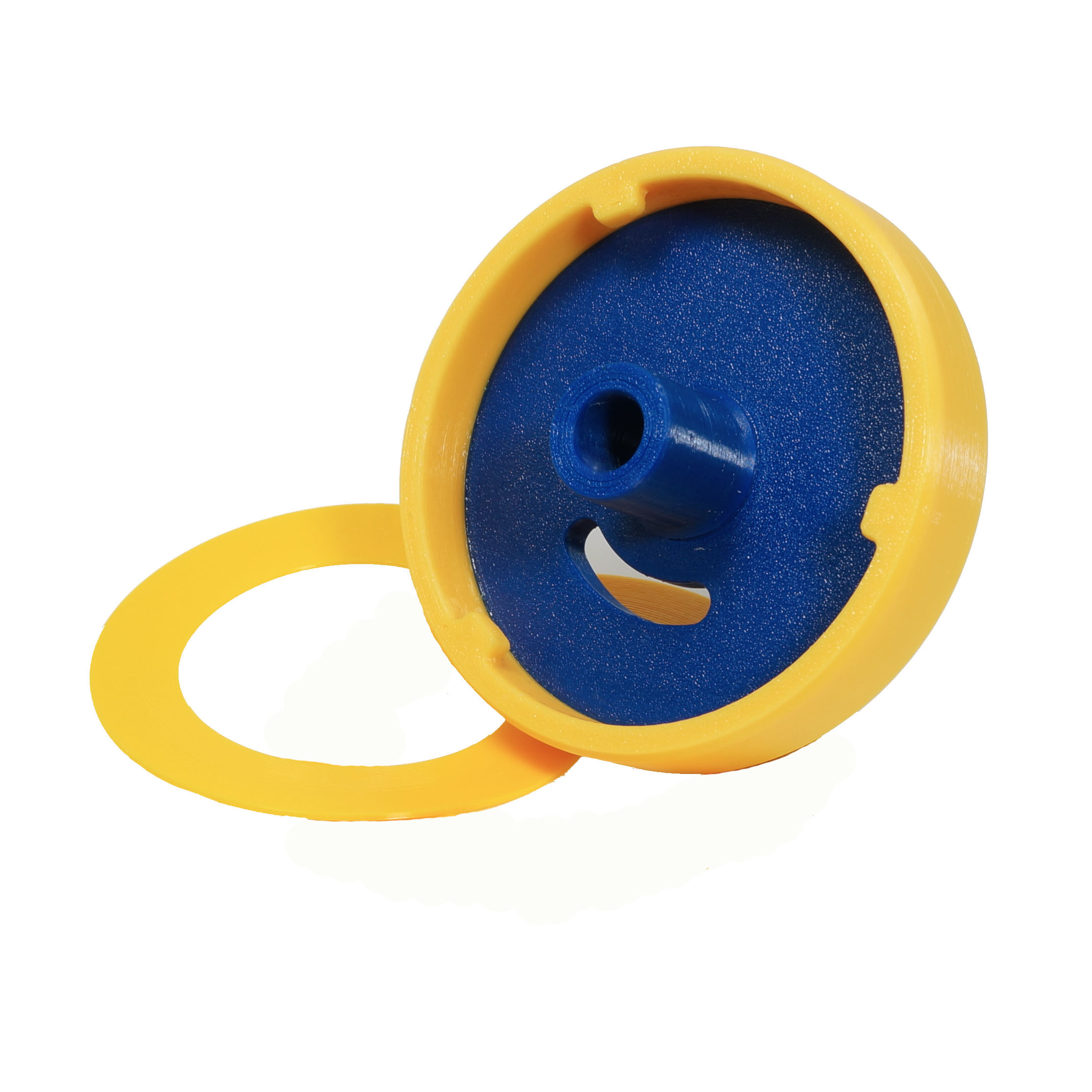

1 WAFA water filling adapter, 1 hose for insertion into the water filler neck, 1 original Gardena O-ring (fitted). Opening inside Ø 55 mm, 1spacer ring seal (hose coupling shown is not included in the scope of delivery, 2 spacer ring seals only for WAFA3A for 78 mm lid diameter).
